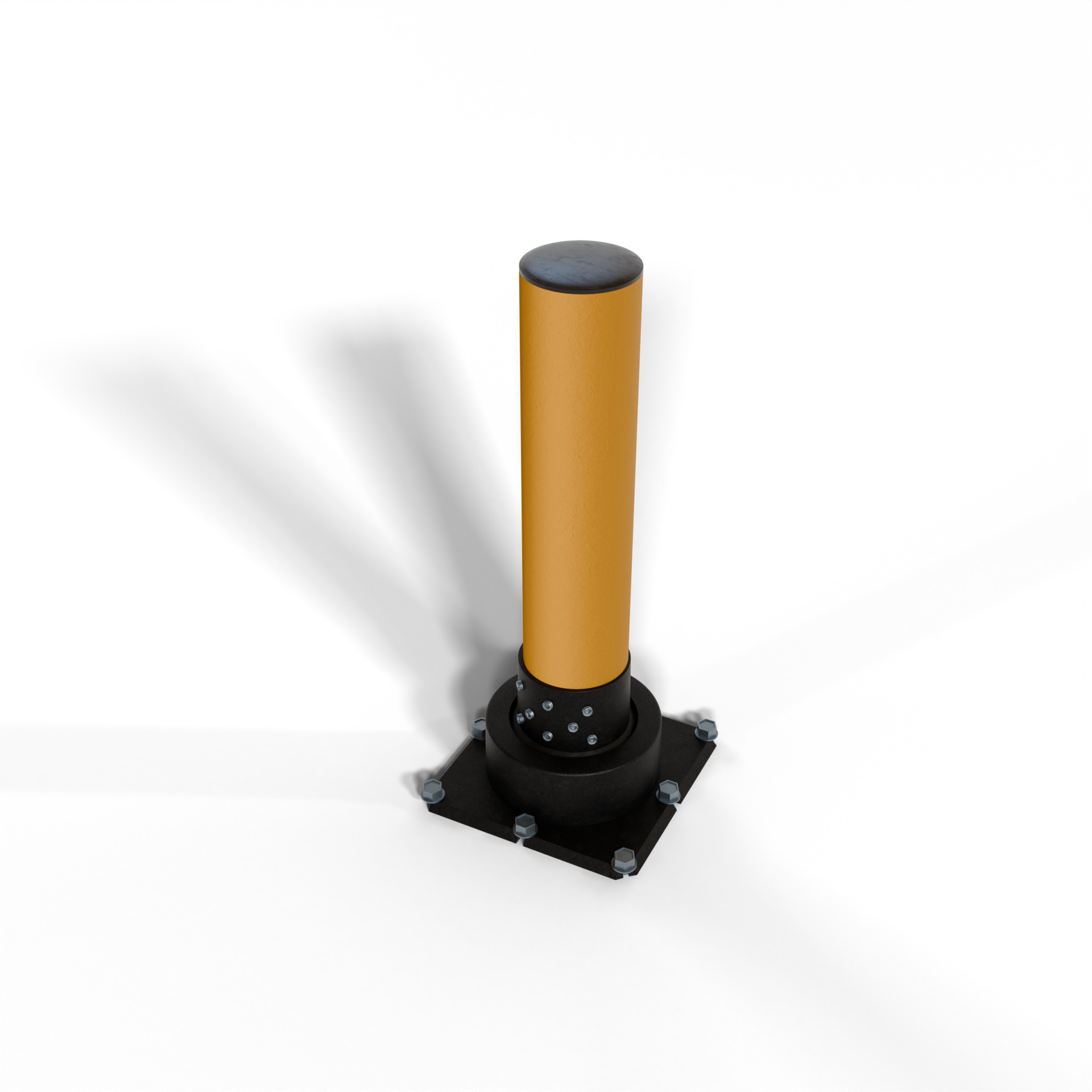

Rebounding Steel Bollard Type 3

Protect buildings, assets, vehicles, and pedestrians from damaging collisions. Ideal for heavy applications such as delivery trucks, heavy forklifts, and even lorries. The Type 3 bollard stops 3,000 kg at 10.6 kph. In fact, this bollard will even stop 35 tons at 3.1 kph without damage. Reduce damage. Stop repairing and replacing bollards. Facility maintenance and safety has never been easier.

The Type 3 Bollard Kit comes with everything needed to install a single rebounding SlowStop Bollard, including anchors. The standard flexible steel bollard kit is 1m tall and comes in a durable yellow powder coat with a C5i corrosion rating and topped with a black cap. Custom heights are available.

SPECIFICATION

Color: RAL 1023 Yellow Pipe on RAL 9005 Black Pedestal
Diameter: 177,8 mm (6,3 mm wall)
Height: 100 cm
Impact Rating: 26.700 joules, 147,3kN
Temperature Rating: -40°C – 70°C
Pipe Coating: EN-ISO 1461 Galvanized + Polyester Powder Coating
Base Coating: Environmentally Friendly Water-based KTL Coating + Polyester Powder Coat C51 corrosion resistance
Set Screws: 8 M16 x 2,00, 8 mm Hex
Anchor Screws: Eight (8) M16x140 Concrete
Cap: Black Plastic
